Product Advantages
-
Main Specifications
-
Application
-
Related Products
Product Advantages
-
Meets 5C continuous discharge requirement
-
Excellent safety performance
-
Superior high-temperature performance
-
Cost-effective
Main Product Parameters
-
18650F30P
3000mAh
-
18650F8P
2580mAh
-

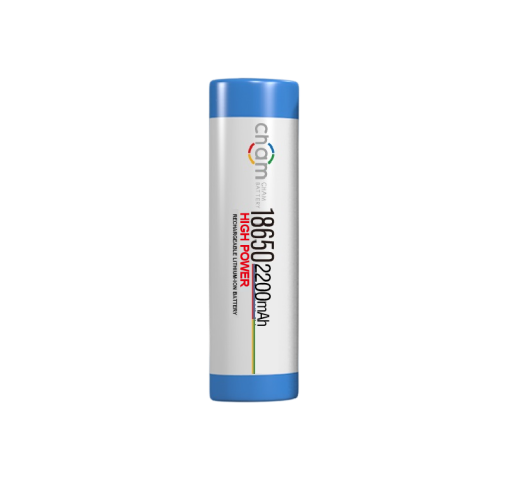

18650F5P
2200mAh
-
-
Nominal Capacity
3000mAh
-
Nominal Voltage
3.6V
-
Internal Impedance
≤18mΩ
-
Max. Continuous Charge Current
4A
-
Max. Continuous Discharge Current
30A
-
Mass Energy Density
232.7 Wh/kg
-
Volume Energy Density
621.6 Wh/L
-
Operating temperature
-20-75℃
-
RT Cycle Life
300 Cycle ≥60%, 2.5V-4.2V（with 4A/20A）
-
-
-
Nominal Capacity
2580mAh
-
Nominal Voltage
3.6V
-
Internal Impedance
≤18mΩ
-
Max. Continuous Charge Current
4A
-
Max. Continuous Discharge Current
①?20A，②30A（with 80℃?cut）
-
Mass Energy Density
207.3 Wh/kg
-
Volume Energy Density
537.2 Wh/L
-
Operating temperature
-30 ~ 80℃
-
RT Cycle Life
250 Cycle ≥60%,2.5V-4.2V（with 4A/20A）
-
-
-
Nominal Capacity
2200mAh
-
Nominal Voltage
3.6V
-
Internal Impedance
≤20mΩ
-
Max. Continuous Charge Current
2.2A
-
Max. Continuous Discharge Current
11A
-
Mass Energy Density
178 Wh/kg
-
Volume Energy Density
452 Wh/L
-
Operating temperature
-20-75℃
-
RT Cycle Life
500 Cycle ≥80%,2.75V-4.2V（with 1C/1C）
-
Application Scenarios
Service Support
Rapid Response After-sales Service
With a dedicated after-sales service team providing 7X24 technical support, users can receive a rapid response in a short period of time, effectively shortening the maintenance cycle.
Professional Team Support
CHAM has been focus on new energy core technology for 20 years, providing customized products and services to customers with its professional pre-sales and R&D teams.
Convenient Service Channel
Extensive sales networks, factories, and after-sales service centers have been strategically deployed in various locations such as Shenzhen, Dongguan, Sichuan, Jiangsu, Indonesia, and Germany.
Customized Design Services
Our professional R&D team focuses on meeting the individual needs of our clients, tailored to create efficient and stable battery solutions that facilitate the successful implementation of projects.
